How to Install Mass Loaded Vinyl

MLV Installation Guide

Mass Loaded Vinyl (MLV) is a dense yet flexible sound-barrier material that is used to reduce airborne noise through walls, ceilings, and floors. Compared to absorptive foams or panels, MLV’s primary role is to block sound by adding mass to a partition, a principle rooted in the mass law of acoustics.

In contemporary construction, meeting acoustic performance standards is code. The International Building Code (IBC) and HUD’s Guidelines for Multifamily Housing require a sound transmission class (STC) of 50 or higher between units. When properly installed, MLV can help you achieve those benchmarks or improve existing walls by 5–10 STC points.

But the real difference lies in the details. In particular, MLV only works well if installed with precision. That means seal all seams, fasten correctly, and avoid gaps. Even the smallest air leak or poorly secured joint can drastically reduce performance. That’s why many homeowners across Los Angeles choose Pure Eco Inc. for expert MLV installation. Because we combine technical knowledge with building expertise so that every layer performs as intended— perfectly.

Key Takeaways

• Tight sealing is essential: every gap reduces performance.
• Weight matters: 1 lb/ft² MLV for homes.
• Retrofitting is possible: use furring strips or self-adhesive MLV on existing walls.
• Precision equals compliance: proper sealing helps meet STC 50 code targets.
• Pure Eco Inc. delivers professional, lasting acoustic results.

Materials & Tools

Step-by-Step: MLV Installation on Bare Framing

1. Measure and cut

Measure from ceiling to floor and subtract ⅛–¼ inch for a perimeter gap. Roll out the MLV and cut straight using a T-square.

2. Position and hang

Lift the first sheet into position from top to bottom, maintaining a 1/8-inch gap along the ceiling and floor. Align it parallel to the framing for smooth seams.

3. Fasten securely

Attach using screws, nails + washers, or cap staples every 8 inches along plates and 16 inches along studs. For metal studs, use self-tapping wafer-head screws (DDS Acoustical).

4. Treat seams

• On studs: butt the edges, seal with acoustical caulk, then tape.
• Between studs: overlap by ≈ 2 inches, tape, and trim excess at plates to avoid double thickness.

5. Handle penetrations

Cut around outlets and switches carefully; apply putty pads behind electrical boxes for airtight coverage.

6. Seal everything

Run a continuous bead of acoustical sealant along all edges and joints. This flexible barrier prevents air, and therefore sound, from slipping through.

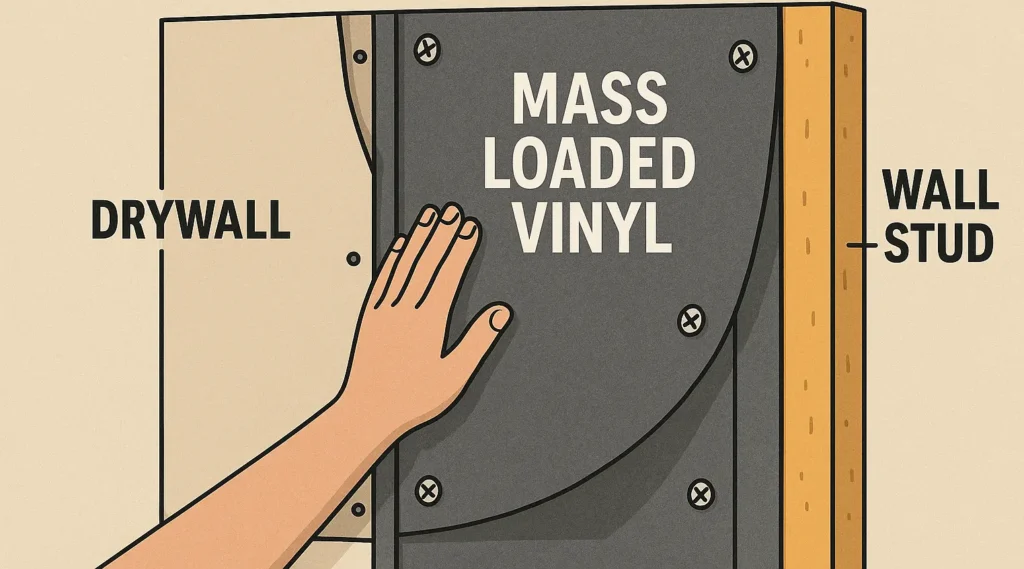

7. Finish with drywall

Install drywall over the MLV, fasten it to the framing, and apply joint compound to the joints. This composite wall adds both protection and acoustic mass.

Retrofitting: How to Install Mass-Loaded Vinyl on Existing Walls

You don’t need to demolish your drywall to enjoy quieter spaces. Installing MLV on existing walls without demolition is feasible using furring strips or self-adhesive MLV.

1. Locate studs with a stud finder and mark them vertically.
2. Attach furring strips along each stud line.
3. Apply MLV:
   • Fasten standard MLV to the strips with screws + washers, or
   • Use self-adhesive MLV. Peel and press firmly.
4. Seal seams and edges with acoustical caulk and tape.
5. Add new drywall, sealing the perimeter afterward.

This method creates a decoupled, sound-resistant surface while preserving your existing structure.

Common Mistakes & Professional Tips

As noted by the U.S. Department of Energy’s Building America Program, even small gaps can lead to significant acoustic failure. In soundproofing, air is the enemy, and an unsealed outlet or seam can undo much of the benefit of mass-loaded vinyl (MLV) by allowing noise to leak through the tiniest openings.

To avoid costly performance losses:

• Avoid overlapping MLV directly over studs. It creates uneven thickness that complicates drywall finishing and may cause vibration bridges.
• Use washers or cap fasteners to distribute pressure and prevent tears when securing heavy vinyl sheets.
• Never skip acoustical sealant. It’s the invisible barrier that maintains airtight continuity and ensures the wall performs as a true soundproof membrane.
• Seal around outlets, joints, and perimeters thoroughly. Every edge and corner should be treated as a potential sound leak.

When in doubt, trust the specialists at Pure Eco Inc. Their certified installers use the right fastening, professional sealants, and verified acoustic methods so that every seam, screw, and surface is optimized for maximum sound isolation.

When to Use Mass Loaded Vinyl vs. Other Soundproofing Methods

Every soundproofing project begins with the question “What type of noise are you trying to block?” The answer determines whether mass-loaded vinyl (MLV) is enough on its own or should be combined with complementary systems.

Understanding Noise Types

• Airborne noise, such as voices, TV, music, or traffic, travels through the air.
• Impact or structure-borne noise, including footsteps, banging, plumbing vibration, travels through building materials.

MLV is primarily designed for use in reducing airborne noise. According to the NIOSH Hearing Loss Prevention Program, limp-mass barriers like MLV are highly effective at blocking airborne sound waves because they resist vibration transfer across walls.

When MLV Is Ideal

If your goal is to block speech, music, or street sounds, MLV is an excellent choice. It adds dense mass while remaining flexible enough to absorb vibration. Adding a 1 lb/ft² layer can raise a typical wall’s STC rating by 8–10 points.

Common uses include:

• Home offices or studios near shared walls
• Apartments or condos with thin drywall
• Restaurants or offices in noisy areas
• Bedrooms adjacent to home theaters

In these cases, MLV performs best when paired with acoustical caulk and double drywall, sealing every joint for maximum mass and isolation.

When to Combine MLV with Other Systems

For impact noise, MLV alone is not enough. You can combine it with decoupling or damping materials to interrupt vibration transfer:

• Resilient channels isolate drywall from studs, reducing vibration.
• Sound isolation clips + hat channels suspend MLV and drywall for superior decoupling.
• Floating floors with MLV underlayment and acoustic subfloor mats help absorb footsteps and shocks.

These hybrid systems merge mass and decoupling, which are the two fundamentals of architectural soundproofing.

When to Consider Alternatives

• For echo control or in-room acoustics, use acoustic panels or foam, which absorb rather than block sound.
• For low-frequency hums, pair MLV with mineral wool insulation to dampen cavity vibrations.
• For temporary or budget projects, soundproof curtains or composite barriers can offer mild improvement but lack the performance of a true MLV wall.

Pure Eco Inc. Recommendations

At Pure Eco Inc., every soundproofing project starts with an on-site acoustic assessment. If you’re fighting airborne noise, the team may recommend a mass-loaded vinyl installation sealed with professional caulking and finished with double drywall.

For vibration or impact noise, Pure Eco Inc. designs layered systems combining MLV with resilient channels or floating floors.

“If your main issue is airborne noise, such as voices, TV, or music, MLV is great. For impact noise such as footsteps or vibration, Pure Eco Inc. designs layered systems that combine MLV with decoupling methods like resilient channels or floating floors.”

— Daniel Herrera, Senior Acoustic Systems Specialist, Pure Eco Inc.

Final Thoughts

Installing MLV is straightforward but detail-intensive. From aligning sheets to sealing seams, every step determines your final soundproofing success. Whether you’re upgrading a home office, creating a studio, or quieting a shared wall, Pure Eco Inc. delivers professional results.

Serving Los Angeles County homeowners, Pure Eco Inc. specializes in precise, code-compliant soundproofing solutions, from mass-loaded vinyl installation to full acoustic retrofits. Our licensed and trained technicians combine precision installation with premium materials, so that every fastener is placed correctly, every seam is sealed, and every client enjoys the quiet they were promised.

For expert-level mass-loaded vinyl installation, trust the team that treats silence like science: Pure Eco Inc.

Frequently Asked Questions

Can I install MLV without drywall?

You can install the MLV without drywall, but it’s not the most effective way to build a sound barrier. Exposed vinyl sound barriers can tear or degrade on open surfaces. When installing layers of drywall over MLV, this adds protection and noise reduction, often improving the STC rating by an additional 1–2 points. For optimal results, always attach the MLV to a clean, solid surface before adding drywall.

How do I cut and place the MLV correctly?

Measure the wall and measure the distance from top to bottom before you cut the MLV. Use a tape measure and a straightedge for accuracy. When you attach the MLV, keep a 1/8-inch gap around the perimeter to allow for caulking. Fasten along the top of each stud using a cap stapler or nails with washers. Be sure the vinyl lies flat, as creases or gaps can reduce sound-deadening effectiveness.

Is MLV heavy?

Yes, it is heavy. A 4′×25′ roll of loaded vinyl sound rated at 1 lb/ft² weighs around 100 lbs. Because of its weight, you can use a pneumatic cap stapler or roofing nails with washers to hold it in place until drywall installation. When installing mass-loaded vinyl overhead, such as on an existing ceiling, we highly recommend assistance for safety and precision.

Does MLV stop footsteps?

MLV provides excellent noise reduction for airborne sounds like speech or music, but for impact noise (footsteps, furniture movement), combine it with rubber underlayments or floating floors for true floor soundproofing. You can also add green glue or acoustic foam layers for ceiling soundproofing in multi-story applications. For professional soundproofing materials, Pure Eco Inc. integrates MLV with resilient channels and other decoupling methods to handle both vibration and airborne noise.

Is MLV safe for indoor use?

Yes, it is. High-quality MLV from trusted suppliers is non-toxic, low in VOCs, and safe for residential applications. It’s a soundproofing material made from dense mineral compounds, not lead. Always use MLV that meets EPA VOC standards and is free of harmful additives. Pure Eco Inc. sources eco-conscious materials designed for long-term noise control and sustainability.
